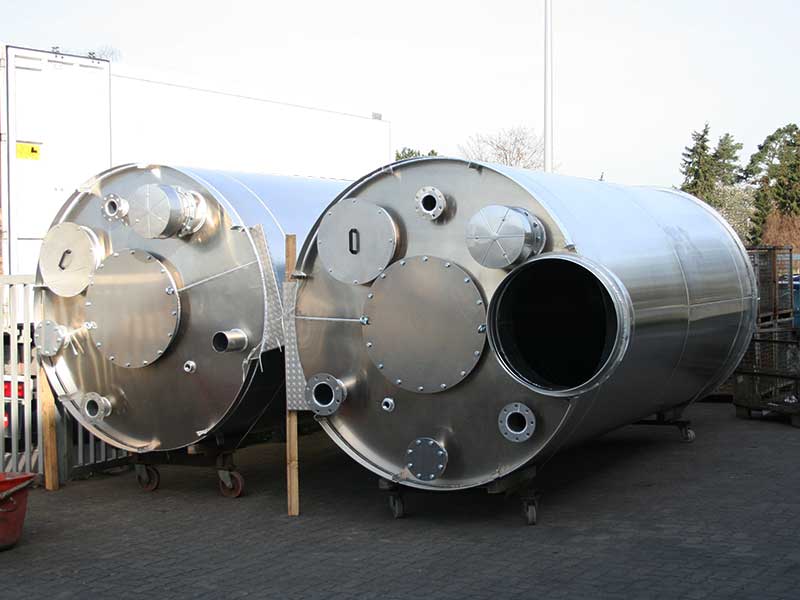

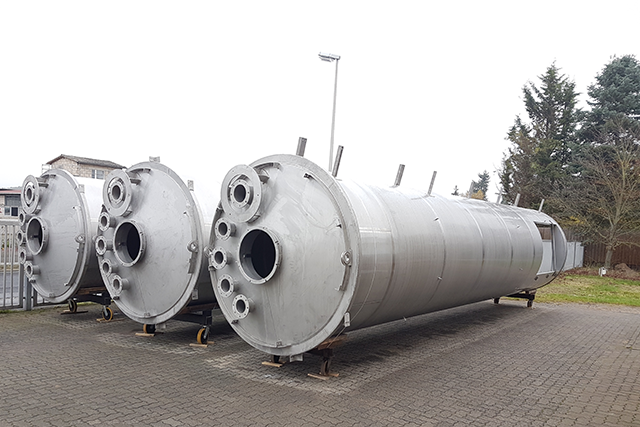

Aluminium and stainless steel Silos are used in various areas, e.g. plastic,food and chemical industry. They are suitable fort he storage of bulk materials up to max. weight of 15.0 kn/m³.
The Amrhein company guarantees a clean and well kept optic



Technical Data

  • Standard silo diameters from 1750 to 3500 mm, the max.
  • Silo hight is currently up to 17.500mm (new Production is planned an will be ready June 2021)

Storage Volume

  • The max. storage volume is currently approx.
  • 150m³
    (from June 2021 up to 300m³)

Werkstoff= Material

  • EN AW 5754
  • SS 304
  • SS 316 Ti
  • special Material on request

fort he production of our Silos we have operating licence according EN 1090
Static Calculation
The static oft he Silos is carried out according to DIN EN 1991-4 providet that the bulk materials are granular or powdery, but in any case well flowable and low cohesion bulk Materials
